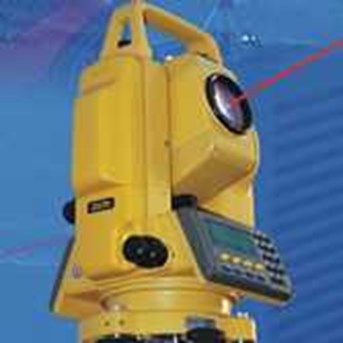

Total Station Reflectorless South NTS-355R

Reflectorless Total Station NTS-355R Produk Pendahuluan Rentang pengukuran tanpa prisma: 100m. Keakuratan: 5 + 3 ppm. Mengukur rentang dengan prisma: 3000m. Keakuratan: 2 + 2 ppm Detail Product : NTS-355R * Measuring Range ( Under fair weather condition) - Range 1p : 2.5KM - Range No Prism : 200M - Digital Display : - Maximum: 999999.999 - Minimum: 1MM - Accuracy : - 1P: 2+ 2PPM - No prism: 5+ 3ppm - Measuring Time : - Fine Mode: 3s - Tracking mode: 1s - Atmospheric Correction : Automatic Correction by Inputing Parameter Prism Constant : 0mm/ 30mm * Angle Measurement - Measurement Method : Incremental Photoelectronic Encoding - Diameter of The Raster Disk( Horizontal/ Vertical) : 79MM - Minimum Reading : 1" / 5" Optional - Accuracy : 5" - Detection Method - Horizontal: Dual - Vertical: Dual * Telescope - Image : Erect - Length : 154MM - Effective Aperture : 45MM, ( DTM: 50MM) - Magnification : 30 - Field of View : 1 30' - Resolving Power : 3" - Minimum Focus : 1M * Vertical Compensation - System : Liquid-electric detection/ Plate vial - Working Range : + / -3' - Accuracy : 1" * Senstivity of Vials - Plate Vial : 30" / 2MM - Circular Vial : 8' / 2MM * Optical Plummet - Image : Erect - Magnification : 3 - Focusing Range : 0.5M ~  - Field of View : 5 * Display - Type : Dual sides/ Single side * Battery - Power Supply : Rechargeable Ni-H battery - Voltage : 6VDC - Operation Time : 8 hours * Dimension & Weight - Dimension : 200* 180* 350MM - Weight : 5.8Kg
